What am I looking at?
Visual recognition

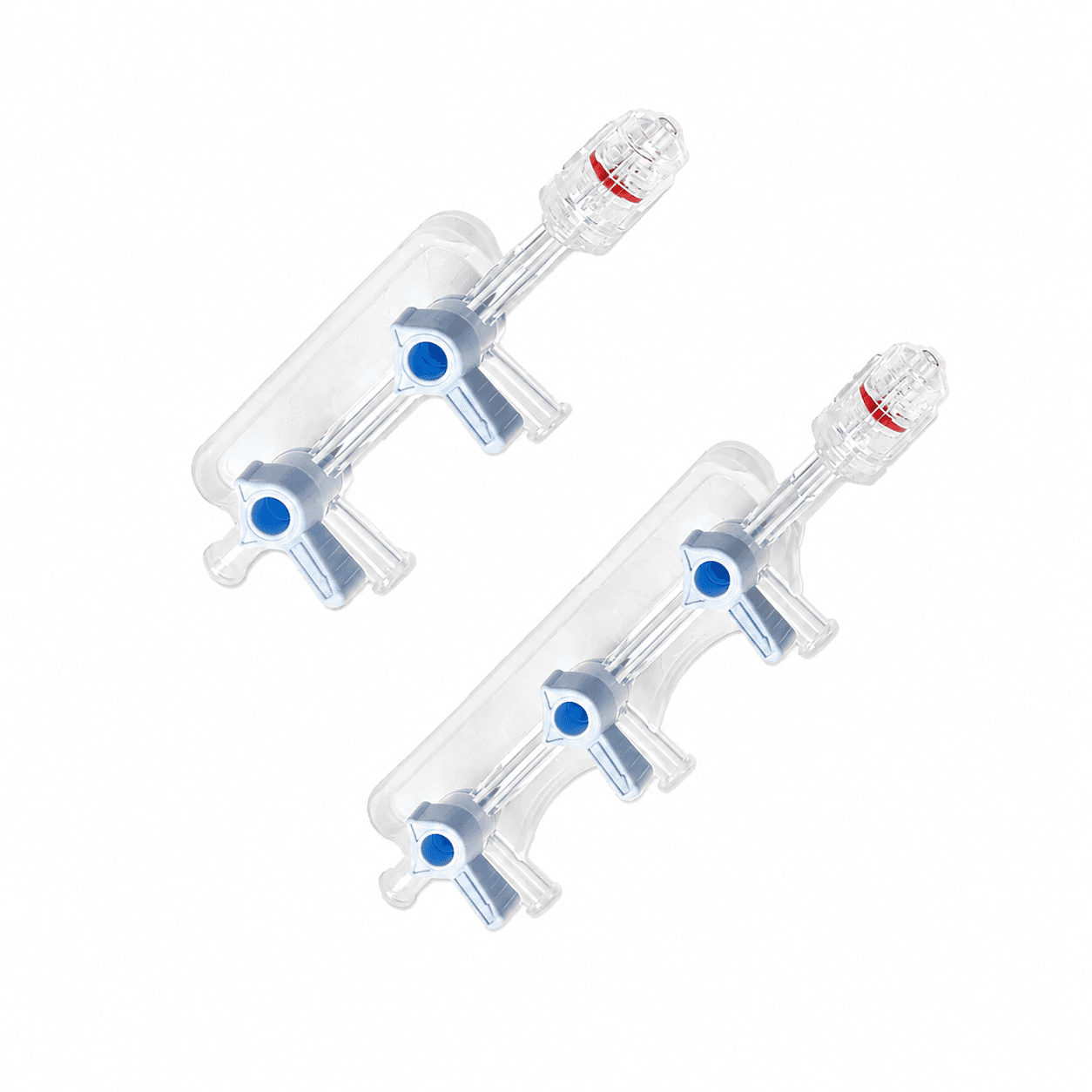

Compact inline plastic manifold with multiple ports and color-coded or directional stopcock levers, creating a central control block for several connected fluid pathways.
06-01
Angiographic manifold
Multi-port angiographic manifold
Three-panel learning framework
Recognition, context, and distinction
What does it do, and where will I see it?
Use & procedural context
Multi-port control center for switching among contrast, flush, and pressure monitoring without breaking the sterile circuit during angiography. Typical procedural contexts include diagnostic angiography, venography, and arterial interventions.
What most clearly distinguishes it from similar devices?
Key distinctions
A manifold consolidates several fluid pathways into one controllable hub, allowing repeated switching among contrast, flush, pressure, and waste without repeatedly disconnecting the sterile circuit.
